Descrizione

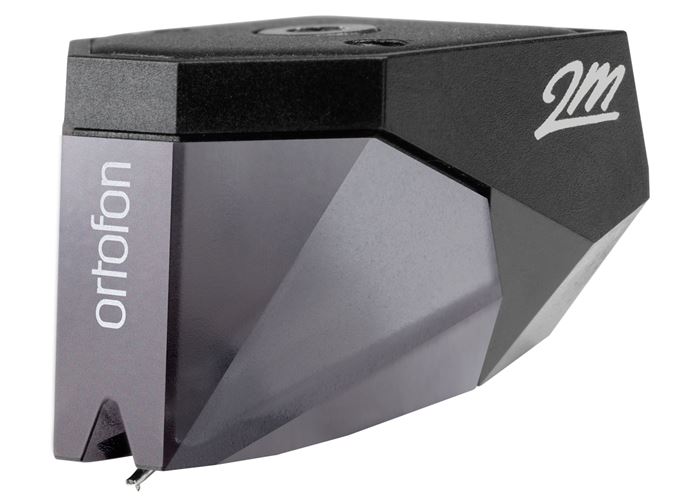

The Ortofon 2M Silver phono cartridge is an OEM-model, that takes most of the characteristics of the 2M Red cartridge. The 2M Silver’s special feature is silver plated copper coils, the same coil wire material as in the 2M Bronze and 2M Black models, with a reduced number of windings.
2M Silver will be an upgrade compared to 2M Red due to a special rubber suspension and silver plated copper wire material.
Output voltage 5.5 mV
Channel separation >25dB @ 1kHz
Compliance dynamic/lateral 20/20 µm/mN
Frequency response – 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force *) – 70 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 µm
Equivalent stylus tip mass – 0.5 mg
Tracking force range – 1.6-2.0 g (16-20 mN)
Tracking force, recommended – 1.8 g (18 mN)
Tracking angle – 20°
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Cartridge colour, body/stylus – Black/Silver
2M standard and 2M Verso cartridges weight – 7.2 g
SENZA CONFEZIONE – BULK
